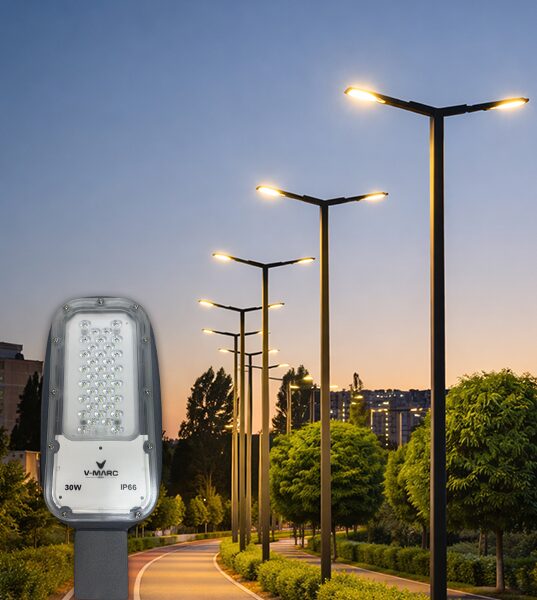

Street Light
Smart Lighting for Safer & Greener Streets
Our Street Lights and Solar Lighting Solutions are designed to provide efficient, reliable, and eco-friendly illumination for roads, highways, residential areas, and commercial spaces. Built with advanced technology and durable materials, our lighting systems ensure maximum brightness, energy savings, and long-term performance.
Factory/Industry
Park
School/Collage/University
Village Lighting
Conductor
High Conductivity More Than 101%
99.97% Electrolytic Copper
Insulation
eBeam XL HFFR,
High Insulation
Sheath
HFFR EBXL for Multicore Cables
Product Range
Up to 300 sq mm
Operating Temp
Up to 150°C
Product Features
- Extruded Aluminum Body: All the components are protected with an IP65 rating.
- Mono Crystalline Solar PV Module : Higher Efficiency Mono Crystalline Solar PV Module is designed with positive power tolerance with efficiency > 17% for faster charging.
- PIR Motion Sensor
- LED Light : High efficiency long life with customized lens for proper light distribution
- Battery
- MPPT Solar Charge Controller
Product Advantages
- Lithium ferro Phosphate (LiFePO4) Battery long life
- PIR Motion Sensor for automatic dimming and brightness of light
- Maintenance free System
- Inbuilt BMS (Battery Management System) for battery Safety
- Longer Shelf life of Battery for Storage
- All Components are integrated inside one unit with which makes it theft-retardant System.
- Easy to install on the existing Pole or on Wall
- Easy to transport and Store.
- Made In India

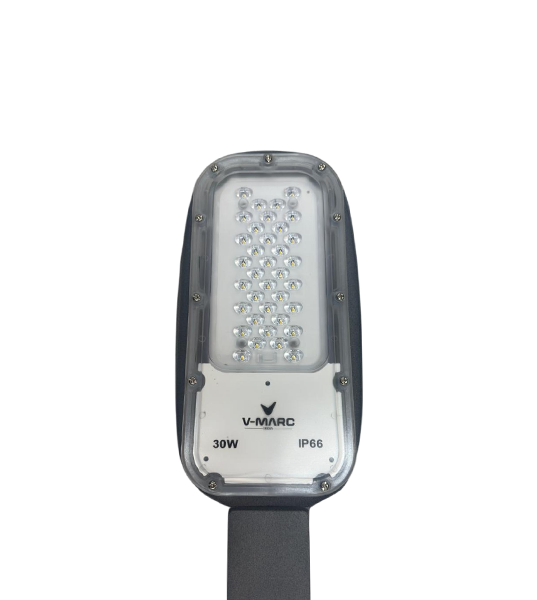

LED STREET LIGHT SPECIFICATION SHEET
| ELECTRICAL | 50W | 100W | 150W |
|---|---|---|---|
| Input power | 30W±10% | 50W±10% | 100W±10% |
| Input Rated Voltage | 220V–240V | 220V–240V | 220V–240V |
| Operating Voltage range | 140V–300V | 140V–300V | 140V–300V |
| Input current | 0.150A (max.) | 0.220A (max.) | 0.440A (max.) |
| Power factor | ≥0.9 | ≥0.9 | ≥0.9 |
| ATHD (%) | ≤20% | ≤20% | ≤20% |
| Input Frequency | 50Hz | 50Hz | 50Hz |
| Driver Efficiency | ≥85% | ≥85% | ≥85% |
| OPTICAL | |||
| CCT (K) | 6500 / 3000 | 6500 / 3000 | 6500 / 3000 |
| Luminous Flux (lm) | 3000 / 2700 | 5000 / 4500 | 10000 / 9000 |
| Luminous Efficacy (lm/w) | 100 / 90 | 100 / 90 | 100 / 90 |
| CRI | >70 | >70 | >70 |
| MECHANICAL | |||
| Size L*W*H (mm) | 305×130×54 ±5 mm | 345×155×54 mm ±5 mm | 418×185×60 mm ±5 mm |
| Type of Mounting | Pole Mounting | Pole Mounting | Pole Mounting |
| Material of LED Engine | MCPCB | MCPCB | MCPCB |
| Material of Lens | PC (IP Lens) | PC (IP Lens) | PC (IP Lens) |
| Material of Fixture | Aluminium PDC | Aluminium PDC | Aluminium PDC |
| Mains Wire | PVC 3 Core 1mm² Cable | PVC 3 Core 1mm² Cable | PVC 3 Core 1mm² Cable |
| SAFETY | |||
| Protections | Surge 4kV, High Voltage 415V, Short Circuit, Open Circuit | Same | Same |
| Environmental | IP66 | IP66 | IP66 |
| LED DRIVER & LED CHIP | |||
| Driver type | Non-Isolated | Non-Isolated | Non-Isolated |
| LED Lumen | >150 lm/W | >150 lm/W | >150 lm/W |
| LED Life | >54,000 Hrs | >54,000 Hrs | >54,000 Hrs |
| Working Temperature | 45°C | 45°C | 45°C |
| IS STANDARD COMPLIANCE | |||
| Applicable Standard | IS 10322 (Part 5 / Sec 5) | IS 10322 (Part 5 / Sec 5) | IS 10322 (Part 5 / Sec 5) |
