V-Marc : India's Leading Wire and Cable Manufacturing Brand
Available Colors
Available in other colors as per the customer’s requirements.

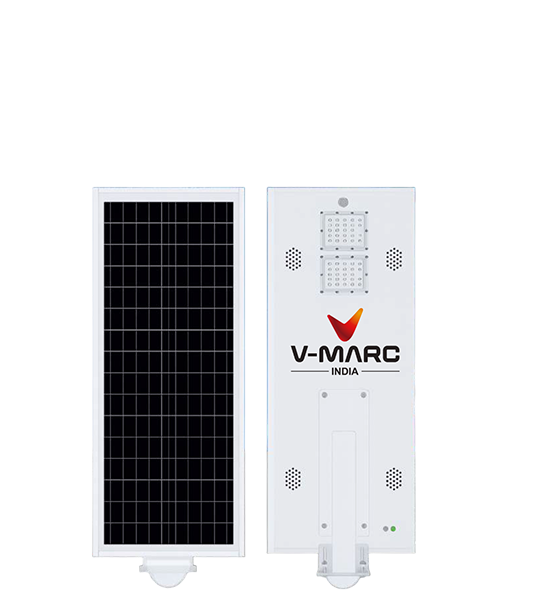

V-Marc India Limited Solar Street Light is made in India and features a high-efficiency mono-crystalline solar PV module, Lithium Ferro Phosphate (LFP) battery with in-built BMS technology, high-efficiency LED, MPPT solar charge controller, and a robust aluminium extruded body.The ALL-IN-ONE system is specially designed with a PIR motion sensor that automatically controls dimming and brightening of the light, thereby increasing overall backup time.
Product Applications
Factory/Industry
Park
School/Collage/University
Village Lighting
Conductor
High Conductivity More Than 101%
99.97% Electrolytic Copper
Insulation
eBeam XL HFFR,
High Insulation
Sheath
HFFR EBXL for Multicore Cables
Product Range
Up to 300 sq mm
Operating Temp
Up to 150°C
Product Features
- Extruded Aluminum Body: All the components are protected with an IP65 rating.
- Mono Crystalline Solar PV Module : Higher Efficiency Mono Crystalline Solar PV Module is designed with positive power tolerance with efficiency > 17% for faster charging.
- PIR Motion Sensor
- LED Light : High efficiency long life with customized lens for proper light distribution
- Battery
- MPPT Solar Charge Controller
Product Advantages
- Lithium ferro Phosphate (LiFePO4) Battery long life
- PIR Motion Sensor for automatic dimming and brightness of light
- Maintenance free System
- Inbuilt BMS (Battery Management System) for battery Safety
- Longer Shelf life of Battery for Storage
- All Components are integrated inside one unit with which makes it theft-retardant System.
- Easy to install on the existing Pole or on Wall
- Easy to transport and Store.
- Made In India
Technical Details
| Model No. | GJIA10-10W | GJIA10-15W | GJIA10-20W | GJIA10-24W | GJIA10-40W |
|---|---|---|---|---|---|
| LED Power | 12 W | 15 W | 20 W | 24 W | 40 W |
| Solar Panel | 40 W | 60 W | 60 W | 75 W | 100 W |
| Battery Type | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 |
| Battery Capacity | 12Ah | 18Ah | 24Ah | 30Ah | 60Ah |
| Total Lumens | 1560lm | 1950lm | 2600lm | 3900lm | 5200lm |
| Colour Temp. | 6000K-6500K | 6000K-6500K | 6000K-6500K | 6000K-6500K | 6000K-6500K |
| Range | 8 meters | 8 meters | 8 meters | 8 meters | 8 meters |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| Charging Time | 1 Day | 1 Day | 1 Day | 1 Day | 1 Day |
| Working Hours | 2-3 Days | 2-3 Days | 2-3 Days | 2-3 Days | 2-3 Days |
